4. Common features: purpose and usage

The following blocks are component definitions with their required imports. Place each root object inside a window as described in section 3.5, and keep imports at the top of the file. Your application implements the business logic in signal handlers.

4.1 Themes, language, and configuration

Purpose: ETheme controls the global light/dark theme, ELocale supplies built-in Chinese and English text, and EConfigProvider supplies default sizes and scoped settings to child controls.

When to use it: Keep appearance consistent across an application, or give a particular region compact sizes, a disabled state, or a scoped locale.

import EUI 1.0
import QtQuick 2.15

EConfigProvider {
    width: 320
    height: 120
    locale: "en"
    size: EStyle.Small

    EButton {
        text: "Compact button"
        anchors.centerIn: parent
    }
}

Set ELocale.language = "zh" / "en" and ETheme.dark = false / true during window initialization or in a language/theme action. Sizes are EStyle.Small, Medium, and Large; a control's explicit size overrides its inherited default. A provider with disabled: true disables its descendants.

Language changes update built-in labels, hints, and Gallery text. Your own text, label, and business data do not translate automatically; use your application's localization bindings. Built-in locale resources are zh.json and en.json.

Set a provider's locale: "en" or "zh" to change built-in text only within that region for controls supporting configuration inheritance, without changing the global language. You can also pass locale: ({name: "en", texts: {SelectAnOption: "Choose an item"}}) to override scoped built-in text.

For custom control colors, use palette methods such as EPaletteManager.ThemePalette.textRegular(ETheme.dark) and surfaceComponent(ETheme.dark). For status colors, use fetchColorForStyle(EStyle.Primary).

4.2 Forms and selectors

Purpose: EForm manages a model and validation rules, while EFormItem connects a model field to its input. ESelect separates display labels from selected values.

When to use it: Settings, profile editors, filters, or forms that must validate data before submission.

import EUI 1.0
import QtQuick 2.15

Column {
    width: 480
    spacing: 16

    EForm {
        id: form

        width: parent.width
        model: ({name: ""})
        rules: ({name: [{required: true, message: "Enter a name"}]})

        onSubmitted: {
            if (valid)
                console.log("Submit name", model.name)
        }

        EFormItem {
            prop: "name"
            label: "Name"
            width: parent.width

            EInput {
                width: parent.width
                placeholderText: "Enter a name"
            }
        }
    }
    EButton {
        text: "Submit"

        onClicked: form.submit()
    }
}

prop names the model field; submit() validates and emits submitted(valid, model). Use validate(callback) for validation alone, resetFields() to restore initial values, and clearValidate() to remove validation feedback. For asynchronous rules, read the final result in a callback or completion signal.

import EUI 1.0
import QtQuick 2.15

ESelect {
    width: 240
    value: "list"
    clearable: true
    textRole: "label"
    valueRole: "value"
    placeholderText: "Choose a view"
    model: [{label: "List", value: "list"}, {label: "Grid", value: "grid"}]

    onChanged: console.log(value)
}

textRole identifies the displayed label, and valueRole identifies the business value. Set value to select an option; clear() clears selection. An option with disabled: true cannot be selected.

EDatePicker.value uses yyyy-MM-dd. Restrict the range with minDate / maxDate; disabledDate(date) receives a JavaScript Date. Use EDatePickerPanel for an embedded date panel.

4.3 Tables, trees, and long lists

Purpose: ETable separates row data from column settings; ETree displays parent/child nodes; EListy creates and reuses delegates on demand for long lists.

When to use it: Data records, file hierarchies, navigation trees, and large scrollable collections.

import EUI 1.0
import QtQuick 2.15

ETable {
    width: 640
    height: 280
    model: [{name: "Alice", score: 92}, {name: "Bob", score: 88}]
    columns: [
        {prop: "name", label: "Name"},
        {prop: "score", label: "Score", width: 120, sortable: true}
    ]

    onRowClicked: console.log(index, row.name)
}

columns[].prop names a row field, and label is its heading. Set a viewport height; row delegates are created with ListView. Call sort("score", "ascending") or sort("score", "descending"); an empty order clears sorting. The column must have sortable: true.

currentRowIndex and selectRow(index) refer to the original model index, including after sorting. currentRow returns the selection; clearSelection() clears it. Replace the entire model array to notify QML about updates. See the Gallery's ETable page for editing, filters, tree rows, toolbars, and export settings.

import EUI 1.0
import QtQuick 2.15

ETree {
    width: 320
    height: 240
    expandedKeys: ["root"]
    model: [{
        id: "root",
        label: "Workspace",
        children: [{id: "docs", label: "Documents"}]
    }]

    onNodeSelected: console.log(key, node.label)
}

Give each node a unique string id for a stable key. Use select(key) and setExpanded(key, expanded), and read currentKey / currentNode. Disabling a parent disables its descendants.

Choose a list component according to data size and presentation needs:

Component	Usage
EList / EListItem	Display titles, descriptions, avatars, and actions from a JavaScript array, with pagination and a responsive grid; configure grid using columns, gutter, and itemHeight
EListy	Assign a JavaScript array to items, set viewport dimensions and rowKey, and create/reuse delegates on demand by default for long lists
EInfiniteScroll	Use with QAbstractItemModel, ListModel, or incremental loading

For EListy, use items such as {id: 10, title: "Alpha", category: "A"} and set rowKey: "id". Group by a field with group: ({key: "category"}); group.key also accepts an (item) => key function. Assign a new items array to update the list.

Call scrollTo(200) for pixel scrolling, or scrollTo({key: 10, align: "top", offset: 8}) to position a stable key; align supports top/bottom/auto. scrollTo({groupKey: "A", align: "top"}) targets the first item in a group. Invalid requests and missing or duplicate keys return false. Read errorString if a grouping callback fails.

A custom itemDelegate can declare itemData, itemIndex, itemKey, groupKey, and listControl; the component updates these fields. Disabling virtual caches all content and is suited to small datasets.

4.4 Uploads and application messages

Purpose: EUpload provides file selection, queue management, and upload interactions. EApp supplies message, modal, and notification managers for a content region.

When to use it: Attachments, image uploads, save feedback, or business confirmations.

import EUI 1.0
import QtQuick 2.15

EUpload {
    limit: 3
    width: 480
    maxFileSize: 5 * 1024 * 1024
    nameFilters: ["Images (*.png *.jpg)"]

    onSelected: console.log("Selected", files.length)
    onFailed: console.log(file.name, message)
    onSucceeded: console.log(file.name, response)
}

The default is autoUpload: false, so this example only selects local files. To upload, configure your HTTP(S) action endpoint and call upload(index) or submit(), or enable autoUpload. Requests use multipart with fieldName (default "file") and optional headers. maxFileSize is in bytes; limit: 0 means no count limit. fileList exposes files and their status. Use cancel() to abort the current upload and removeFile(index) to remove an entry.

Call app.message.open("Saved") to display a message. The complete window in section 3.2 demonstrates showing messages from a button. You can also retrieve the current instance's managers with app.useApp(). Place EApp inside a window; your application implements persistence and service calls.

4.5 Choosing a chart

Component	Purpose	Use it for
EChart	Native Qt line, bar, and area rendering	Simple numeric series, lower runtime overhead, and software rendering
EECharts	Local Apache ECharts hosted by Qt WebEngine	ECharts options, additional chart types, legends, zoom, and interaction events

A native line chart:

import EUI 1.0
import QtQuick 2.15

EChart {
    width: 480
    height: 240
    type: EChart.Line
    model: [12, 18, 15, 26, 32, 28]
}

EChart.type supports Line, Bar, and Area. model accepts a numeric array or {label, value} data-point objects, such as [{label: "Mon", value: 12}, {label: "Tue", value: 18}]. value is numeric and label supplies the horizontal-axis label; omitted labels default to indices starting at 1.

An EECharts example:

import EUI 1.0
import QtQuick 2.15

EECharts {
    width: 640
    height: 360
    renderer: "canvas"
    option: ({
        xAxis: {type: "category", data: ["Mon", "Tue", "Wed"]},
        yAxis: {type: "value"},
        series: [{type: "bar", data: [12, 20, 16]}]
    })

    onFailed: console.log(message)
}

ECharts scripts, HTML, and bridge resources are bundled locally in the plugin; loading the chart engine does not require a CDN. Whether remote data or images require network access depends on your option. Options must be JSON-compatible, so JavaScript formatter functions cannot pass through the bridge. Read ready / errorString, use methods such as setOption() and dispatchAction(), and handle clicked, legendSelected, and dataZoomed.

For Qt 5 EECharts, add this include to the minimal host's main.cpp:

#include <QtWebEngine/qtwebengineglobal.h>

Call this before constructing QGuiApplication:

QtWebEngine::initialize();

Add these application CMake dependencies:

find_package(Qt5 5.15 REQUIRED COMPONENTS WebEngine WebChannel)
target_link_libraries(MyEuiApp PRIVATE Qt5::WebEngine Qt5::WebChannel)

The Gallery already initializes the host; see example/src/main.cpp. With QT_QUICK_BACKEND=software, EECharts displays an unavailable explanation and does not create a WebEngine chart view. Remove this environment variable when using EECharts and verify the target machine's graphics backend. Qt Quick's software scene graph and QT_OPENGL=software are different settings.

4.6 Layouts, floating buttons, and border effects

Purpose: EFlex distributes space between children; EFloatButton / EFloatButtonGroup provide floating actions; EBorderBeam draws animated light along a border.

When to use it: Toolbars, flexible panes, shortcuts at fixed positions, and cards needing visual emphasis.

Component	Key settings
EFlex	Set gap to a number or [horizontal, vertical]; justify supports start/center/end/space-between/space-around/space-evenly, and align supports start/center/end/stretch
EFlexItem	Wrap content that should share remaining space; grow / shrink control growth and shrinkage, basis sets the initial size, and minSize / maxSize constrain it
EFloatButton	Position with anchors or x/y; configure icons, text, badges, hints, and disabled state
EFloatButtonGroup	Use trigger: "click" or "hover" for an expanding menu, or an empty value for persistent actions; placement supports top/bottom/left/right
EBorderBeam	Configure count, size, radius, duration, and color; duration is in seconds, running: false pauses, and reducedMotion: true stops and hides the decoration

Ordinary EFlex children retain their existing sizes; EFlexItem enables growth and shrinkage. basis: -1 uses the content's implicit size, so provide implicitWidth/implicitHeight or set basis explicitly. Avoid position anchors on children managed by the layout.

Floating menus can extend beyond their group, and a parent with clip: true clips them. Border beams do not intercept input, so their content remains interactive. The Gallery's component pages contain complete interactions and copyable examples.

4.7 Call animations in one line

EAnimation is a singleton provided by import EUI 1.0; no animation object needs to be declared in the page.

EAnimation.play(card, "fadeIn")
EAnimation.play(input, "shake")
EAnimation.play(card, "bounceIn")
EAnimation.play(card, "flipInY")
EAnimation.play(card, "slideInUp", { duration: 300, distance: 24 })

These are separate examples; card and input are existing visual item IDs. An event handler can use onClicked: EAnimation.play(card, "fadeIn").

Category	Complete effect names	Behavior
Fade (18)	fadeIn, fadeOut, fadeInUp, fadeInDown, fadeInLeft, fadeInRight, fadeOutUp, fadeOutDown, fadeOutLeft, fadeOutRight, fadeInTopLeft, fadeInTopRight, fadeInBottomLeft, fadeInBottomRight, fadeOutTopLeft, fadeOutTopRight, fadeOutBottomLeft, fadeOutBottomRight	Directional variants combine opacity with movement, including four diagonal directions.
Slide (8)	slideInUp, slideInLeft, slideInDown, slideInRight, slideOutUp, slideOutDown, slideOutLeft, slideOutRight	Slide from or toward each direction while fading in or out.
Scale and zoom (12)	scaleIn, scaleOut, zoomIn, zoomOut, zoomInUp, zoomInDown, zoomInLeft, zoomInRight, zoomOutUp, zoomOutDown, zoomOutLeft, zoomOutRight	Scale enters from or exits toward 85%; zoom uses 30% and can include directional movement.
Rotate and roll (13)	rotateIn, rotateOut, rotateInUpLeft, rotateInUpRight, rotateInDownLeft, rotateInDownRight, rotateOutUpLeft, rotateOutUpRight, rotateOutDownLeft, rotateOutDownRight, spin, rollIn, rollOut	Rotate around the center or a corresponding corner; roll combines movement and rotation; spin rotates once.
Bounce (11)	bounce, bounceIn, bounceOut, bounceInUp, bounceInDown, bounceInLeft, bounceInRight, bounceOutUp, bounceOutDown, bounceOutLeft, bounceOutRight	Bounce for emphasis or enter/exit with rebound, including directional variants.
Flip (5)	flip, flipInX, flipInY, flipOutX, flipOutY	Flip once around the Y axis, or enter/exit around the specified X/Y axis.
Attention and feedback (12)	shake, pulse, shakeX, shakeY, swing, tada, wobble, jello, rubberBand, flash, heartBeat, headShake	Shake horizontally or vertically, pulse, swing, celebrate, wobble, skew elastically, stretch, flash, or beat; shake is the compatibility name for shakeX.
Light speed (4)	lightSpeedInLeft, lightSpeedInRight, lightSpeedOutLeft, lightSpeedOutRight	Combine horizontal movement and skew with fading in or out.

EAnimation.effects returns all 83 effect names. The optional third argument accepts:

Option	Default	Values
duration	300	A nonnegative integer in milliseconds; 0 completes immediately, maximum 2147483647.
distance	24	Movement or shake distance in pixels, from 0 to 1000000; affects directional movement, bounce, and shake.
easing	Easing.OutCubic; attention effects and bounce use Easing.Linear	A regular Qt easing enum, such as Easing.InOutSine; curves requiring additional control points are unsupported.

play() returns true on success. A null target, unknown effect/option, or invalid number returns false without interrupting the current animation. Playing again on the same item replaces its animation without accumulating visual transforms; different items can animate simultaneously.

EAnimation.stop(target) stops playback, clears animation movement, scale, rotation, flip, and skew, and restores the opacity from before the animation took control. It returns false if the target has no animation record. Existing anchors, position, rotation, scale, and property bindings are preserved. Exit effects finish at opacity 0; entering again restores the original opacity, or uses 1 for an initially transparent item. Attention effects restore the original state when finished.

Animations control visual appearance; application logic manages visible, enabled, and layout occupancy. Transparent items can still receive input. The Gallery's Visual Effects → Animation page offers eight categories plus an all-effects filter, parameter controls, previews, invocation copying, and complete example source.

4.8 Desktop components introduced in 1.2.0

The desktop components below were introduced in software version 1.2.0. When a catalog entry's introducedIn matches the current build version, Gallery navigation shows a green New badge and the overview lists those components together; component details retain the introduction version. The current 1.3.1 is a fix release, so components introduced in 1.2.0 and 1.3.0 do not show current-version badges.

Component	Purpose	Main API
EFilePicker	Open files or choose a save location	mode: "open" / "save", multiple, nameFilters, folder, value, picked(value)
EFolderPicker	Choose an existing folder	folder, value, picked(value); presets mode: "folder"
EToolBar	Reusable actions with overflow	model, showText, size, spacing, alignment, command(value, item)
ECodeView	Read-only source highlighting and copying	code, language, highlight, showLineNumbers, showCopy, copy()
ECommandPalette	Search and execute application commands	model, shortcut, query, open(), closeOnTrigger
EWizard	Multi-step configuration	model, currentIndex, beforeLeave, next(), previous(), finish(), reset()

Pickers use the platform dialog. value is a URL string for single-file, save, and folder selection, and an array of URLs for multiple-file selection. open(), close(), and clear() control selection. acceptSelection(urls) validates an external selection, preserving the old value and emitting selectionRejected(reason) on failure. Save mode selects a destination; the application writes the file.

Toolbar and command-palette model entries support text, command, iconSource, enabled, visible, handler(item), and a Qt Quick Controls Action in action. Toolbar entries also support separator, checkable, checked, and shortcut; palette entries support description and keywords. Both emit command(value, item) after execution and failed(message) for exceptions. The palette defaults to Ctrl+Shift+P; set shortcut: "" to disable it.

ECodeView highlights qml, javascript, and js; other languages use plain text colors. Source is escaped before display. copy() preserves original source and tabs; selected display text uses four spaces for each tab.

Wizard model entries use {title, description, disabled, component}, with a QML Component for each page. Pages are loaded on first visit and retained. beforeLeave(from, to) may return a boolean or Promise; false rejects navigation, and busy is true while a Promise is pending. Finishing uses the model length as to. After completed(), call reset() to start again. The application handles canceled(). allowJump enables clicking steps, still subject to beforeLeave.

Each new component has five runnable examples in the Gallery.

4.9 Comparison, navigation, work components and interaction extensions in 1.3.0

Version 1.3.0 introduced 26 public types, including ECompare, EScheduler, ETaskBoard and ETextEditor, plus password rules, transfer drag/reordering, dynamic dialogs, pointer-positioned context menus, image thumbnails/flip/save and tag avatars. That version added 149 runnable Gallery scenarios and localized property documentation. See the component and interaction reference for models, methods and scope.

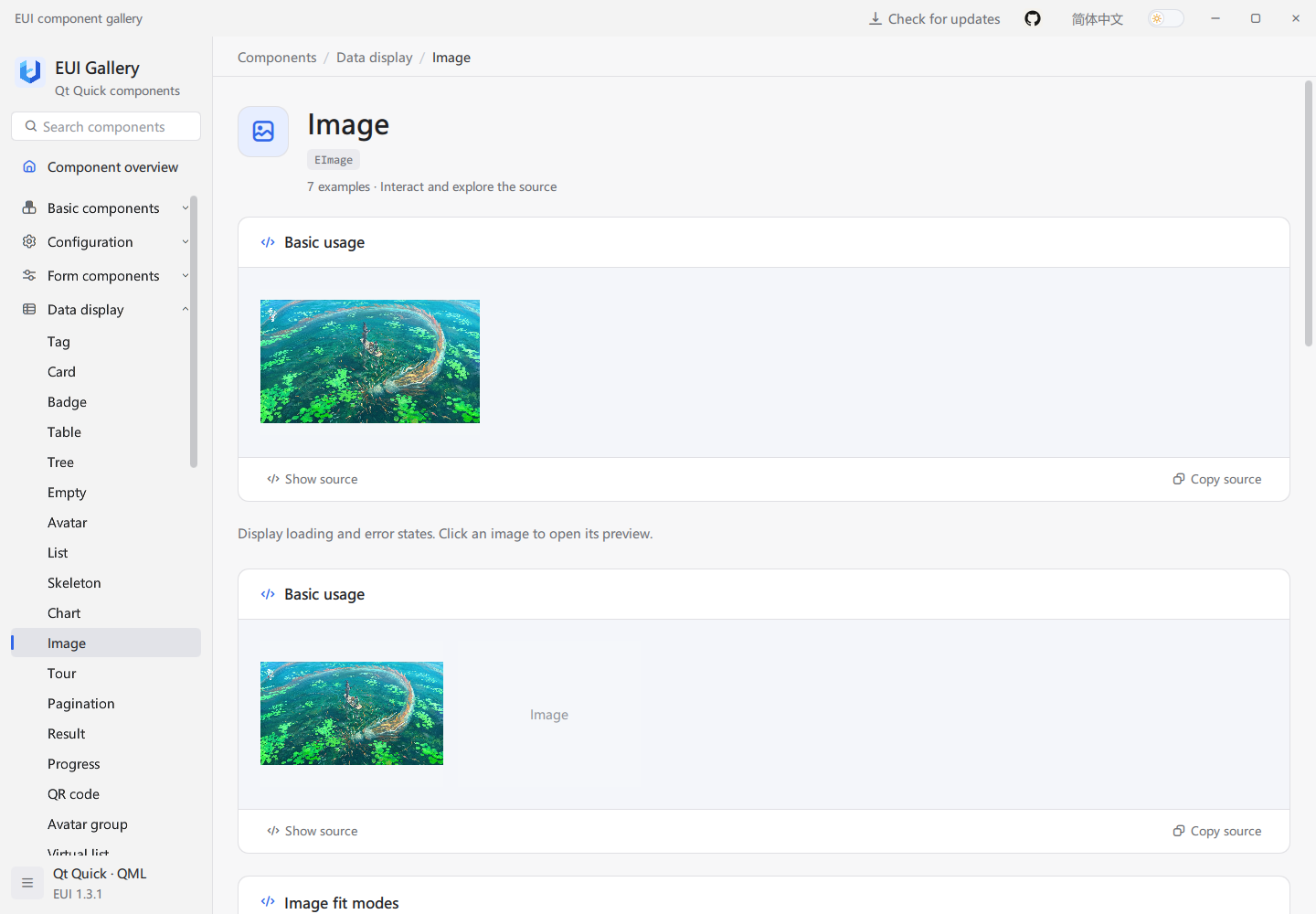

4.10 Bundled image examples in 1.3.1

Avatar, carousel, image preview, upload, image comparison, and visual effect examples use local images bundled with the Gallery, without downloading remote sample images. Preview thumbnails load only when the preview is open and thumbnails are enabled; the error example runs only when requested.

URLs under qrc:/example/images/gallery/... belong to Gallery resources. When copying an example into your application, replace them with your own local or qrc URLs and declare those images in your application's resource file. Image components do not require copying all Gallery images. See the image asset notes for sources and licensing.
